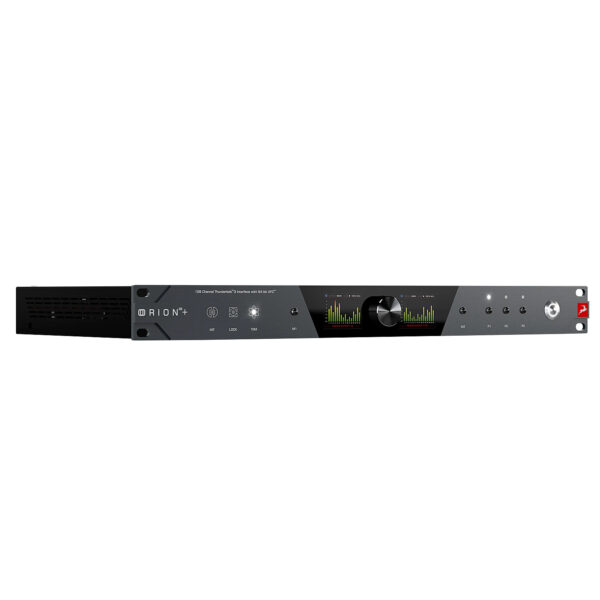

Antelope Audio – Orion 32+ Gen4 | THUNDERBOLT AND USB AD/DA AUDIO INTERFACE
$3,295.00
UNMATCHED PRECISION. UNWAVERING LEGACY.
For more than ten years, the Orion 32 series has redefined professional audio recording and production standards. The newest generation of this legendary 1U studio interface raises the bar once again—blending the strengths of previous models with cutting-edge enhancements to meet the demands of today’s audio professionals. The Orion 32+ Gen4 features Antelope Audio’s latest innovations, delivering a significant leap in performance and creative potential.

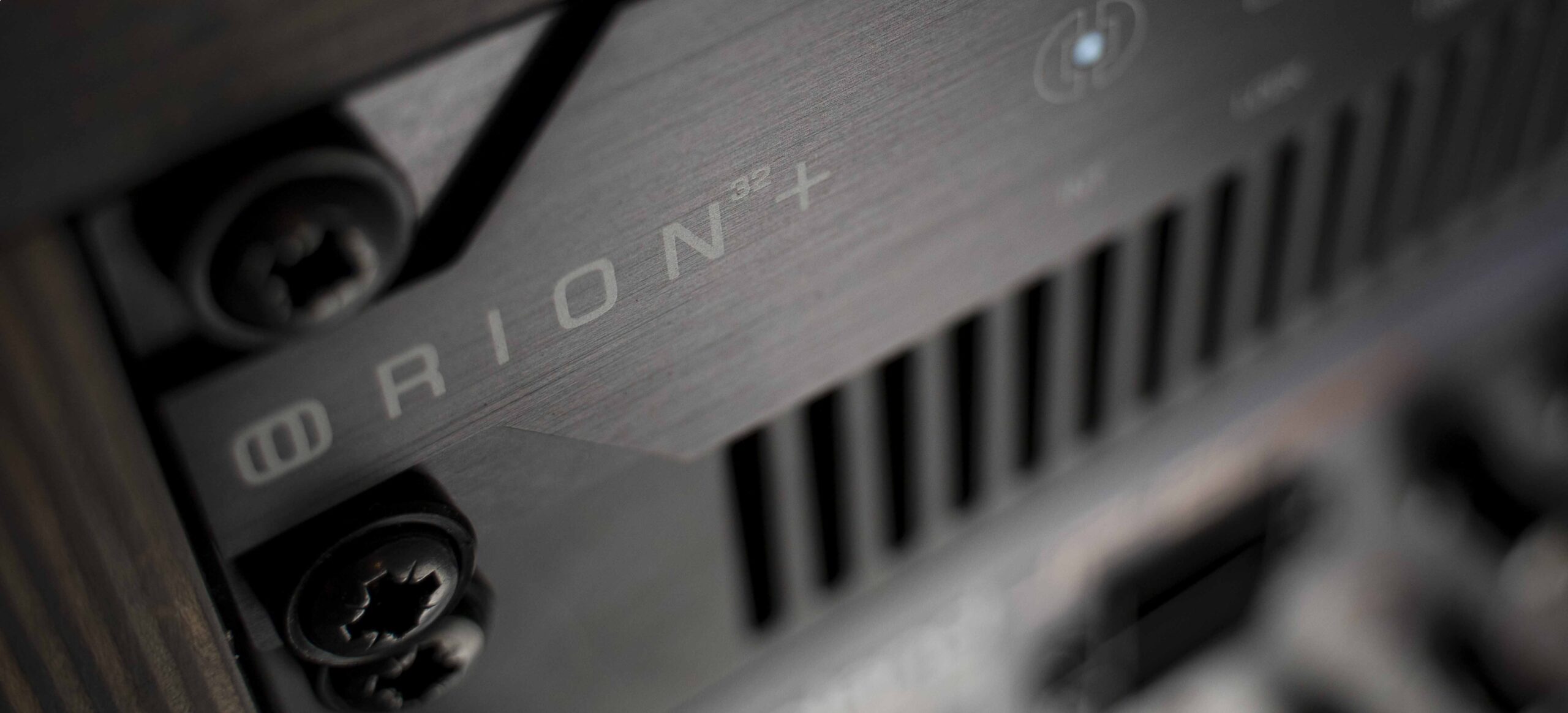

STANDARD-SETTING CONVERSION
Recognized worldwide for their superior clocking and conversion, Antelope Audio interfaces have long set the benchmark in professional audio. The new Orion 32 Gen4 continues this legacy, offering pristine AD/DA conversion with up to 130dB dynamic range—cementing its place at the top of the multichannel interface market. At its core is Antelope’s proprietary 64-bit Acoustically Focused Clocking and advanced jitter management, trusted by leading engineers and producers across countless productions.

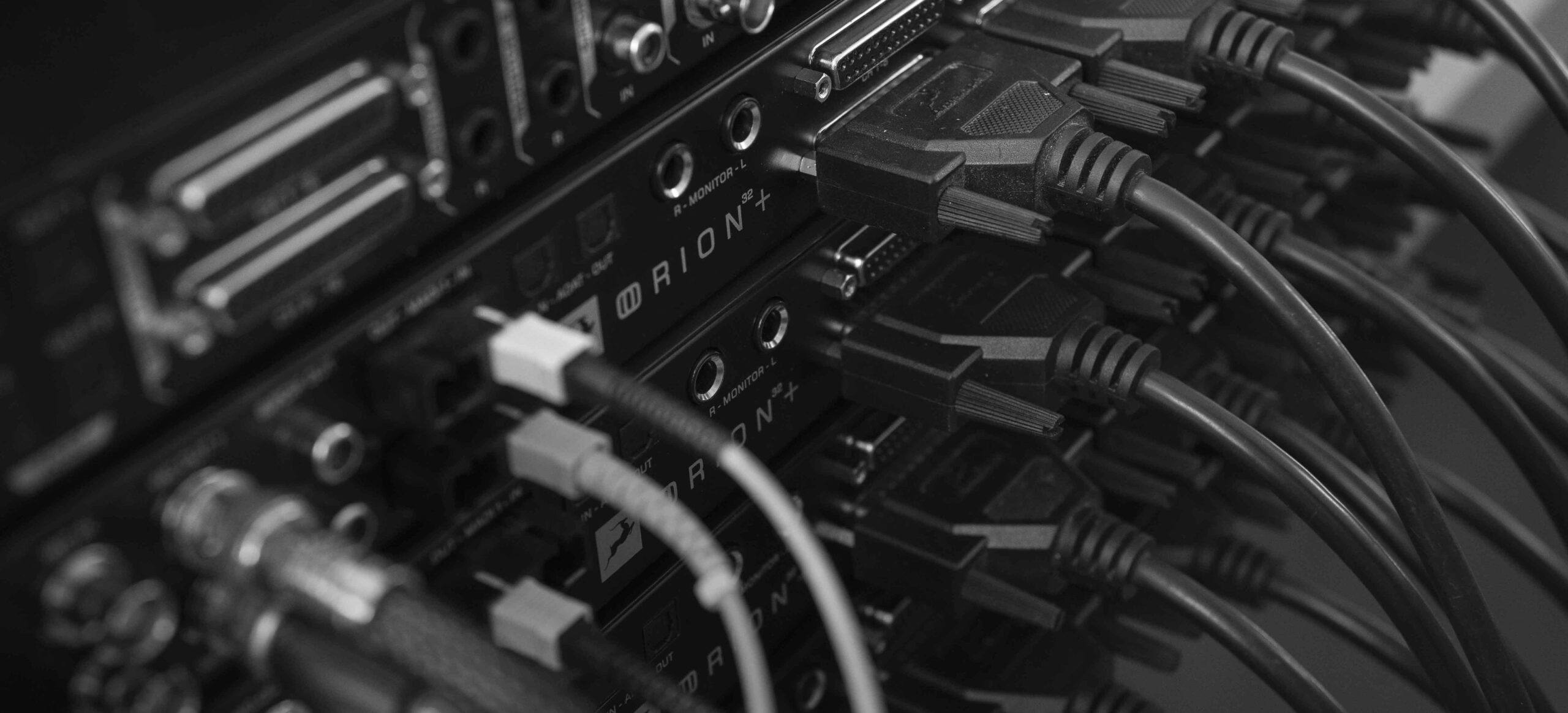

MORE AUDIO THAN YOU CAN HANDLE
The Orion 32+ Gen4 delivers twice the Thunderbolt™ streaming capacity and MADI connectivity of the previous generation. With 128 channels at your disposal, you can daisy-chain up to four units via a single computer connection—perfect for handling demanding studio sessions, live sound environments, intricate post-production workflows, and broadcast applications. Its versatile connectivity makes it the ideal match for large-format mixing consoles, outboard gear chains, analog summing setups, tape machines, modular synth rigs, and beyond.

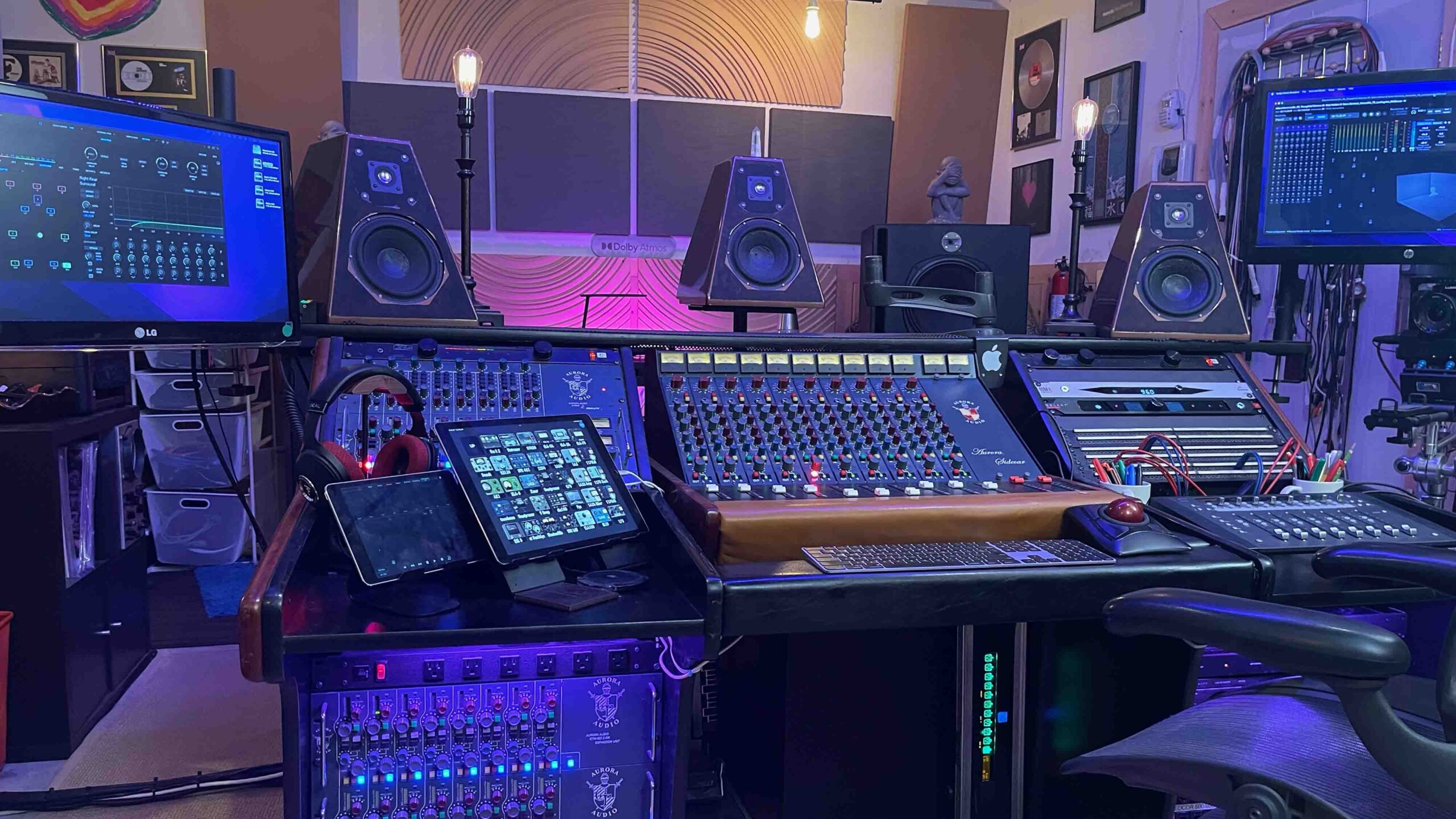

EMBRACE THE FUTURE OF AUDIO PRODUCTION
The Orion 32+ Gen4 is fully equipped to support immersive and surround audio workflows, offering compatibility with over 23 formats—from standard stereo all the way to Dolby Atmos 9.1.6. It features advanced speaker and room calibration tools, intuitive monitoring controls, and instant preset recall to streamline complex sessions and boost productivity.
*This functionality is available via an optional upgrade license. Each purchase of an MRC remote includes a complimentary activation code.

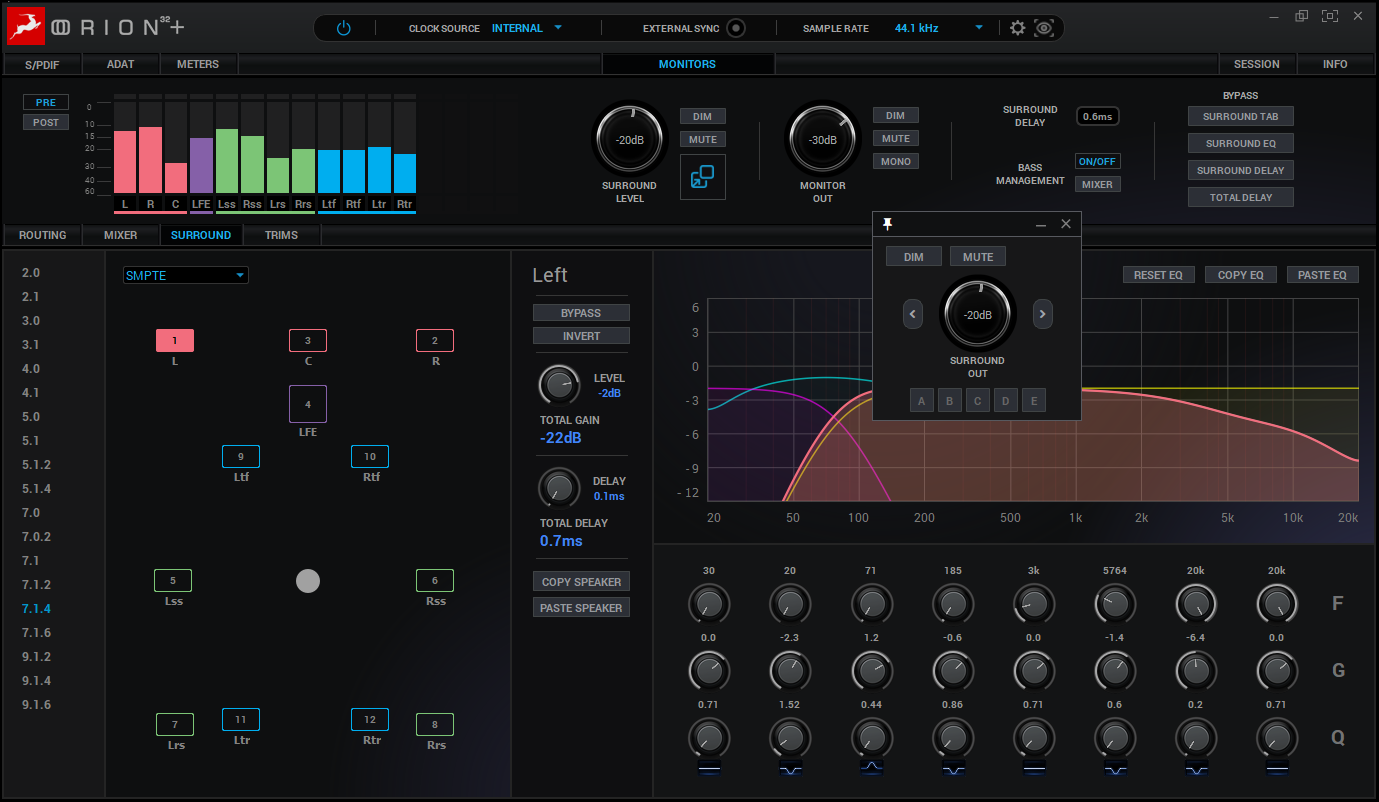

MORE THAN JUST A PRETTY FACE
The Orion 32+ Gen4 introduces not only a sleek new design and significantly enhanced hardware, but also a completely reimagined Software Control Panel for a more streamlined workflow. It features a robust preset recall system that stores signal routing, level settings, mixer configurations, and monitoring preferences with ease. A new floating monitoring widget offers quick access to output levels and presets, staying on top for convenient, real-time control. The fully customizable routing matrix has been redesigned for intuitive patching and reduced complexity, giving users a faster and more flexible setup experience.
EASY INTEGRATION IN ANY SETUP
Built for seamless integration, the Orion 32+ Gen4 adapts effortlessly to a wide range of studio setups—whether you're working over Thunderbolt or USB. Fully compatible with both Windows and macOS, it’s a versatile solution for recording, mixing, conversion, interfacing, and even advanced routing or monitor control. With DC-coupled I/O, it also becomes the perfect companion for modular synth enthusiasts, enabling direct CV signal output from your DAW to your hardware instruments.

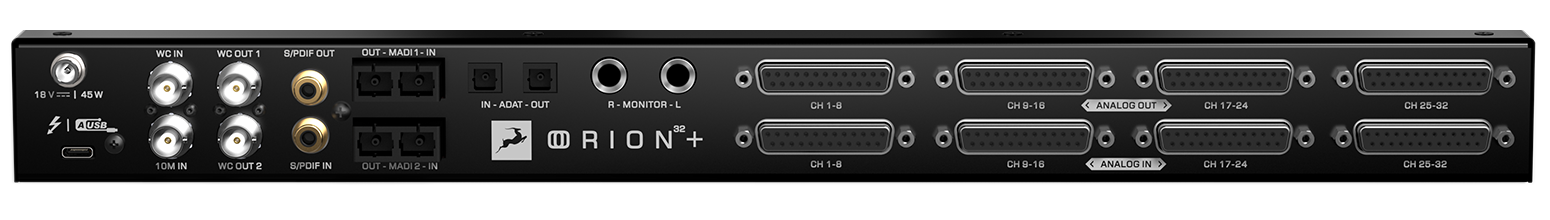

Connectivity
• 32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard);
• 32 analog output channels over 4 × DC-coupled D-Sub 25 connectors (TASCAM standard);
• 1 × Dedicated stereo monitor output over 1⁄4 TRS;
• Computer connectivity via single USB-C port supporting either Thunderbolt™ 3 or USB 2.0, for 128 and 32 channels of I/O respectively, at up to 192kHz (Thunderbolt™ 2 also supported via а Thunderbolt™ 3 to 2 adapter);
• Custom macOS & Windows drivers for low latency performance in native DAW applications over both Thunderbolt™ and USB;
• Digital I/O: 128 channels of optical MADI (up to 48kHz, reduced at higher SRs), 8 channels of ADAT (up to 48kHz, reduced at higher SRs), and 2 channels over S/PDIF (up to 192kHz);
• Clocking I/O: 1 × word clock input, 2 × word clock outputs, 1 × 10М input.
Clocking & Conversion
• Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail;
• High-resolution A/D and D/A conversion ensuring artefact-free audio with 130dB dynamic range on line and monitor outputs and 122dB on line inputs.
OPTIONAL MULTICHANNEL MONITORING SYSTEM*
• 23+ formats readily compatible, from stereo through surround and immersive audio;
• Speaker calibration processing for up to 16 channels or 9.1.6 Dolby Atmos;
• Extensive monitoring control functionality designed for seamless workflow;
• MRC remote controller compatible as an optional system add on;
*Feature can be unlocked either via purchasable license available in our software store or with the purchase of an MRC remote controller.
WORKFLOW-ENHANCING FEATURES
• Comprehensive presets system with signal routing, level adjustments, mixer settings and effects;
• Handy monitoring pop-out widget with output level controls and 5 quick preset recall buttons;
• 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing;
• All analog and digital ports can be used simultaneously for easy integration with multiple systems and different setups;

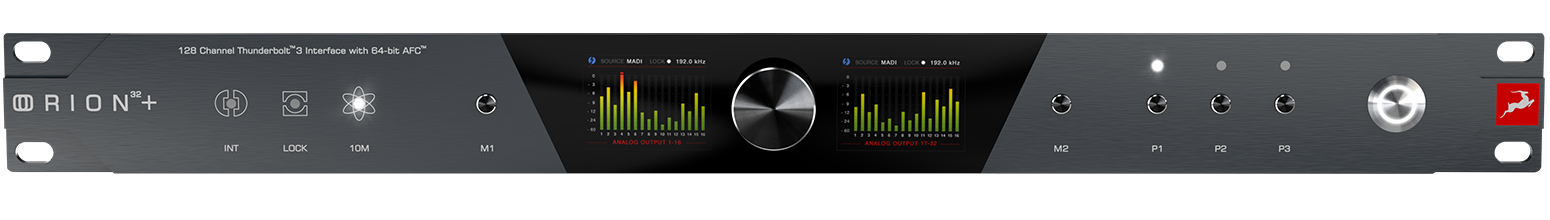

• Two 1.8′′ IPS display screens for independent signal metering;
• Standalone use without a computer connection available, with routing, metering and monitoring controls from the two front panel displays.
IN-THE-BOX CONTENT & DIMENSIONS
• Getting started guide
• Power adapter
• USB cable
Device:
W: 48,3 cm (19 in); D: 28 cm (11 in); H: 4,4 cm (1,73 in); 3,4 kg (7,4 lbs)
Box:
W: 63,6 cm (25 in); D: 34 cm (13,4 in); H: 11 cm (4,3 in); 5 kg (11 lbs)
